The design of the Clone 1 guitar perfectly captures the balance of old and new aesthetics. Designed to be a modern interpretation of a jazz archtop guitar the profile suits the needs of both the old souls and the vibrant youths. Among today’s vast musical landscapes, jazz has extremely wide applications, making this the perfect model for anyone with influences from the Roaring Age. Featuring a heavily asymmetric body shape and offset waist, the design of this guitar effectively creates lines that are bold, yet clean. The meticulously crafted tail piece, bridge, and materials carry over the old jazz guitar aesthetic, ultimately blending the new with the old. Subtle woodworking techniques make this instrument a great pleasure to build, and an even greater pleasure to hold and play. Once your fingers begin bebopping along this beauty, you may not be able to put her down.

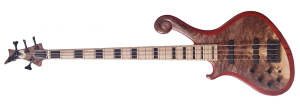

| Model | Scroll bass |
| Number of strings | 4 |
| Construction type | Neck Thru |
| Scale length | 34 |
| Nut Width | 1 1/2” |
| F-Board Radius | 12” |
| Neck Profile | standard “c” |
| Neck Wood | 5 laminate hard curly maple with walnut stringers |
| Body Wings | Curly Maple |
| Top Wood | claro walnut nested into body |
| Fretboard Wood | ebony |
| Headstock Veneer | ebony |
| Binding Package | none |
| Finish | Hand rubbed oil, clear satin |
| Pickups | Bartolini J bass |
| Electronics | Bartolini preamp with, volume, blend, 3way active eq three position profile switch |
| Bridge | Hipshot four string |
| Fretboard Inlay | small block |
| Headstock Inlay | none. |
| Fretwire Size | stew mac 154 wide/high |
| Tuners | Gotoh compact tuners 3×1 |
| Truss Rod | two-way hotrod 4mm allen with two 24” carbon fiber reinforcing rods |
| String Guage | DR Hi Beams 45-105 |
